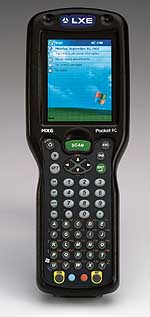

LXE MX6

Compact, rugged flashlight-style handheld
(by Kirk Linsky)

LXE designed the MX6 for those who'd like most of the power and functionality of the big MX5, but whose application requires a smaller, lighter package. The MX6 uses the same 400MHz PXA255 processor, but is a bit more modest in all other aspects. There is 64MB RAM and 32MB flash to support the friendly WinMobile 2003 for Pocket PC platform, a single SD Card slot for expansion, and a slightly lesser IP64 rating. However, the MX6 is handier and weighs considerably less than the MX5, and it doesn't give up much in functionality. It comes with either a 35-key numeric or 56-key alphanumeric keypad, an integrated 1D laser scanner or a 1D/2D area imager with image capture capabilities, and plenty of onboard connectivity. This is a perfect device for warehouse and distribution data collection applications.

Specifications
Form-factor Rugged flashlight-style handheld
CPU Speed Intel PXA255/400 MHz
OS Windows Mobile 2003 for Pocket PC
RAM/ROM 64MB/32MB
Card slots 1 SD
Display type Color TFT
Display size/res 240 x 320
Digitizer/pens touch/1
Keyboard/keys 35/52-key keypad
Navigation directional control
Housing NA
Operating Temp -4 to 122F
Sealing IP64
Shock 5 foot drop
Size (WxHxD) 3.45 x 9.6 x 1.7
Weight 1.25 lbs.
Power 14.8 Watt-Hour Li-Ion ("8+ hrs.")
Interface USB, RS232, IR, 1D/2D scanner
Wireless 802.11b
List price $3,300 (incl. radio and scanner)
Contact www.lxe.com
